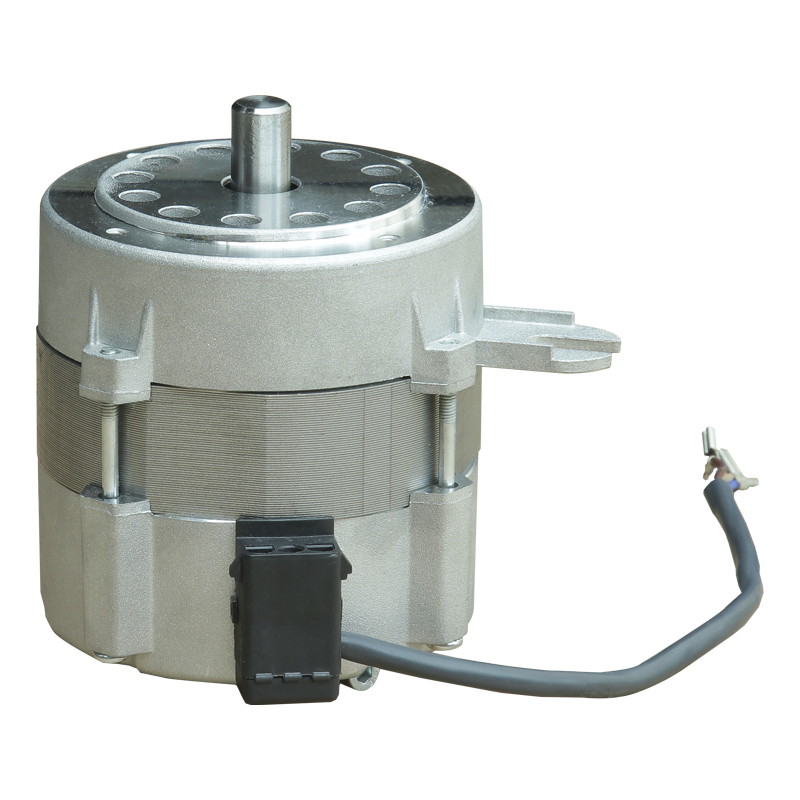

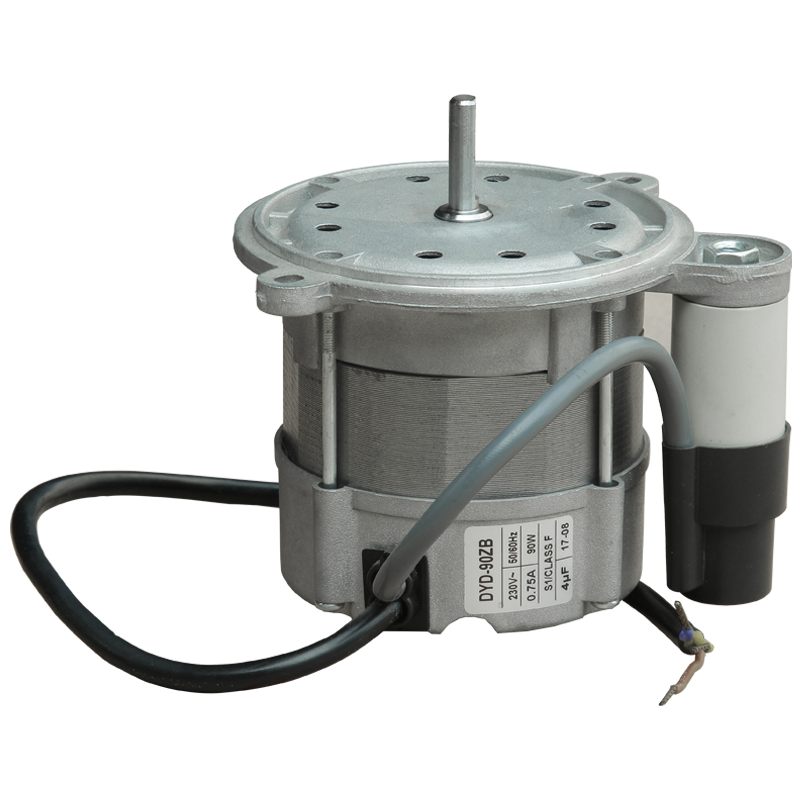

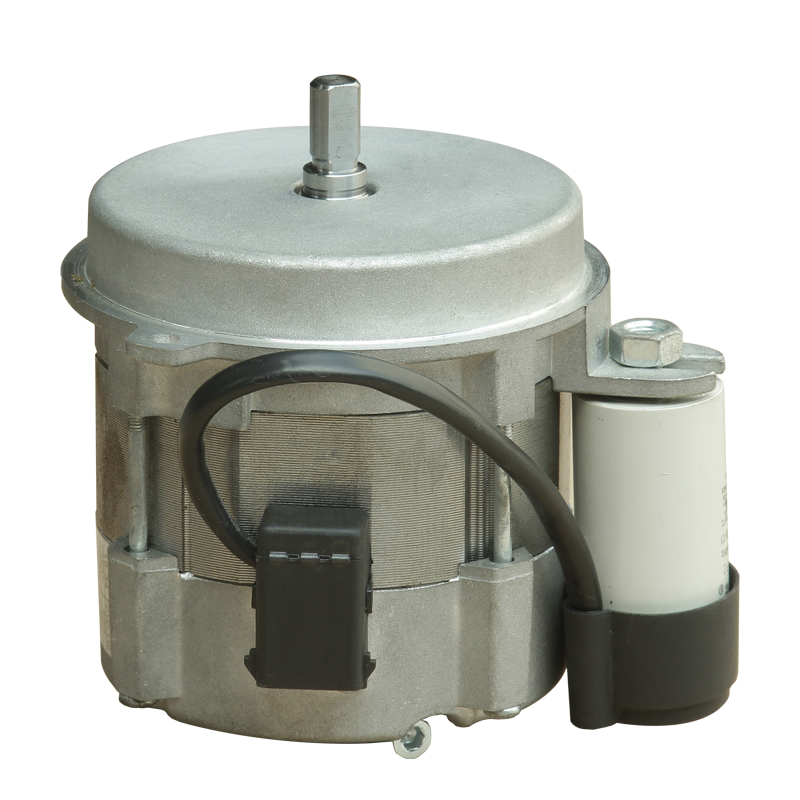

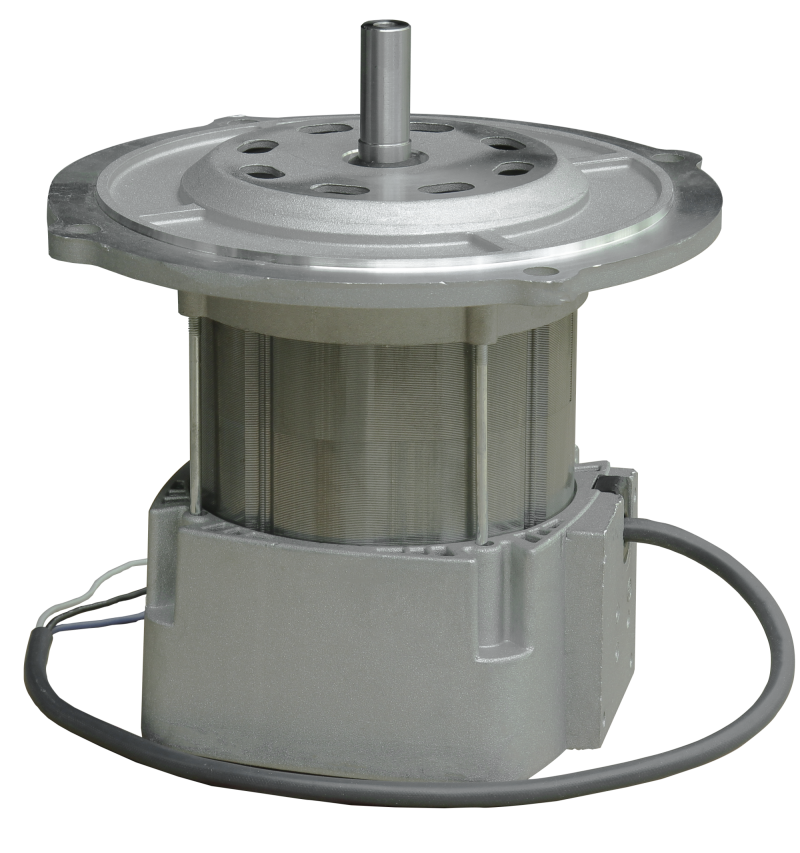

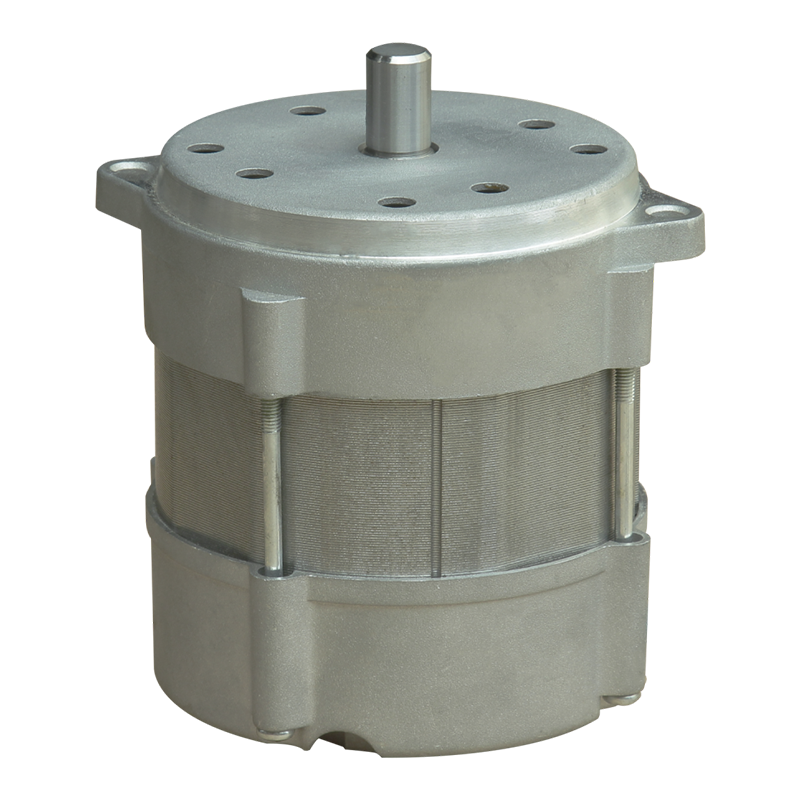

Single Phase Motors
Applications：
• Gas or oil burners
• High-pressure water cleaner
• Hot air generators
• Portable heaters
• drying kilns
Product strengths:
• Great adaptability and customized options available
• Wide operating voltage (200-240V) and frequency (50/60Hz)
• Premium spare parts sourced from well-known brands
• RoHS-compliant raw materials
• Insulation class: F or H
• Operating temperature -40°C ~ 60°C
• Protection class IP20 to IP55
|
Single Phase Motors |
||||||
|
Type |
Voltage(V) |
Frequency(HZ) |
Power(W) |
Speed(rpm) |
Poles |
Duty |
|
YY-6312-75 |
220-240 |
50/60 |
75 |
2800/3400 |
2 |
S1 |
|
YY-6322-90 |
220-240 |
50/60 |
90 |
2800/3400 |
2 |
S1 |
|
YY-6322-110 |
220-240 |
50/60 |
110 |
2800/3400 |
2 |
S1 |
|
YY-6332-135 |
220-240 |
50/60 |
135 |
2800/3400 |
2 |
S1 |
|
YY-6342-150 |
220-240 |
50/60 |
150 |
2800/3400 |
2 |
S1 |
|
YY-6342-180 |
220-240 |
50/60 |
180 |
2800/3400 |
2 |
S1 |
|
YY-6342-200 |
220-240 |
50/60 |
200 |
2800/3400 |
2 |
S1 |
|
YY-6352-250 |
220-240 |
50/60 |
250 |
2800/3400 |
2 |
S1 |
|
YY-6352-300 |
220-240 |
50/60 |
300 |
2800/3400 |
2 |
S1 |
|
YY-7112-250 |
220-240 |
50/60 |
250 |
2800/3400 |
2 |
S1 |
|
YY-7122-370 |
220-240 |
50/60 |
370 |
2800/3400 |
2 |
S1 |
|
YY-7132-420 |
220-240 |
50/60 |
420 |
2800/3400 |
2 |
S1 |
|
YY-7132-450 |
220-240 |
50/60 |
450 |
2800/3400 |
2 |
S1 |
|
YY-9012-370 |
220-240 |
50/60 |
370 |
2800/3400 |
2 |
S1 |
|
YY-9022-550 |
220-240 |
50/60 |
550 |
2800/3400 |
2 |
S1 |
|
YY-9032-750 |
220-240 |
50/60 |
750 |
2800/3400 |
2 |
S1 |
